TP-Link TL-SG105 5-Port Gigabit Switch

• 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Plug and play, no configuration needed
• Supports 802.1p/DSCP QoS and IGMP Snooping functions
• Durable metal casing, desktop/wall-mounting options, and a fanless design
• IEEE 802.3x flow control provides reliable data transfer
• Green Ethernet technology reduces power consumption

lug and Play,-Port Gigabit Desktop Switch

Plug and Play,

Expand Your Gigabit Network

5-Port Gigabit Desktop Switch

Conveniently Conduct Business

The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.

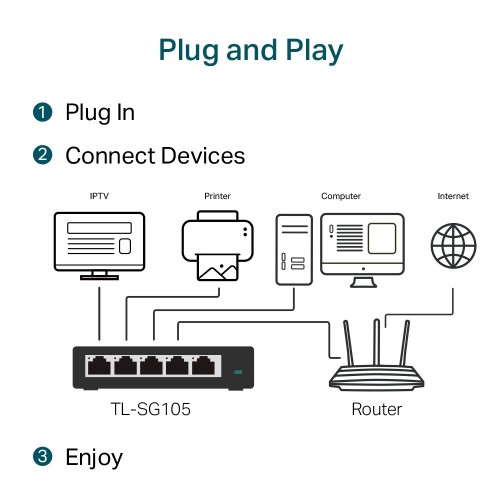

Plug and Play, No Configuration Required

A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.

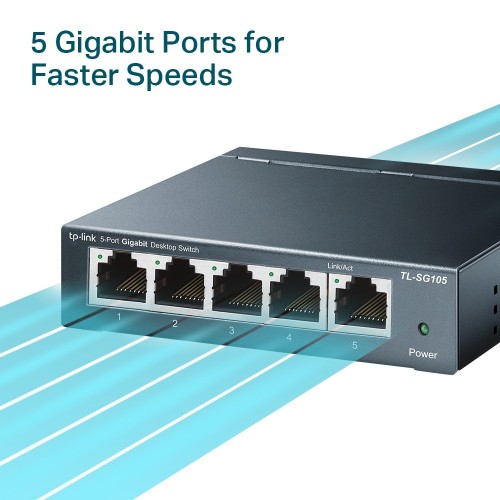

Five Gigabit Ports for Faster Speeds

Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

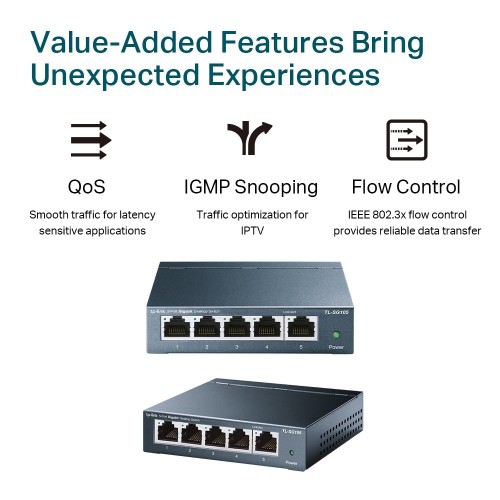

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

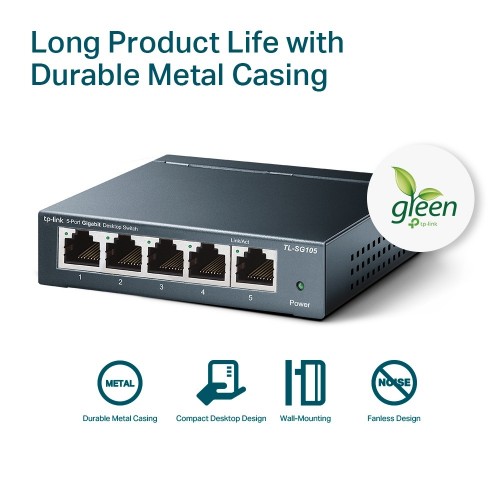

Long Product Life with Durable Metal Casing

Interior components of TL-SG105 are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105 delivers switching performance you can depend on.

Go Green with Your Ethernet

TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)

LED Indicator System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption 2.3 W (220 V/ 50 Hz)

Max Heat Dissipation 7.83 BTU/h

PERFORMANCE

Packet Forwarding Rate 7.4 Mpps

MAC Address Table 2K

Packet Buffer Memory 1 Mb

Jumbo Frame 16 KB

SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

802.1P/DSCP QoS (for V2 and later version)

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC, RoHS

Package Contents 5-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0–40 °C (32–104 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
