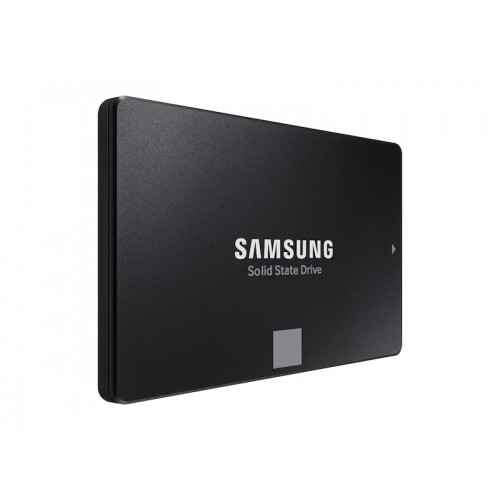

Samsung 870 Evo 1TB SATA SSD

The SSD all-star

The perfect choice for creators, IT professionals or everyday users, the latest 870 EVO has indisputable performance, reliability and compatibility built upon Samsung's pioneering technology.

The SSD all-star

Excellence in performance

Everyday users can now enjoy professional-level SSD performance with the 870 EVO, which maximizes the SATA interface limit to 560/530 MB/s sequential speeds,* accelerates write speeds and maintains long-term high performance with a larger variable buffer that lets the SSD work faster, longer.

* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential write performance measurements are based on Intelligent TurboWrite technology.

* Test system configuration: Intel Core i7-7700K CPU @ 4.20GHz, DDR4 1200MHz 32GB, OS – Windows 10 Pro x64, Chipset: ASUS PRIME Z270-A. All performance data was measured with the SSD as a secondary.

Excellence in performance

Industry-defining reliability

Meet the demands of each task. From everyday computing to 8K video processing — with up to 600 TBW* under a 5-year limited warranty, plus a stable host experience, low lag with the 6th generation VNAND, and steady performance when multi-tasking with the powerful MKX controller.

* Warrantied TBW (terabytes written) for 870 EVO: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model and 2,400 TBW for 4 TB model.

Industry-defining reliability

More compatible than ever

The 870 EVO has been compatibility tested* for major host systems and applications, including chipsets, motherboards, NAS, and video recording devices.

* Compatibility tests conducted with Samsung internal, AMD, MSI, Gigabyte, Synology, QNAP, BlackMagicDesign and ATMOS.

More compatible than ever

Upgrade with ease

Using the 870 EVO SSD is as simple as plugging it into the standard 2.5-inch SATA form factor on your desktop PC or laptop — the renewed migration software takes care of the rest.

Upgrade with ease

Samsung Magician software

Make your drive work smoothly with enhanced Samsung Magician 6 software* that helps you easily manage your drive, keep up with the latest updates, monitor the drive's health and status, or even enhance its performance.

* Compatibility tests conducted with Samsung internal, AMD, MSI, Gigabyte, Synology, QNAP, BlackMagicDesign and ATMOS.

Samsung Magician software

Unlock the power of Samsung SSDs in a few easy steps

Follow these simple instructions to install your SSD.

Unlock the power of Samsung SSDs in a few easy steps

World's No. 1 Flash Memory Brand

Experience the performance and reliability that you can only get from the world's number one brand for flash memory since 2003.* All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

General Feature

Product Type

870 EVO SATA 2.5" SSD 1TB

Family Line

870 EVO SATA 2.5" SSD

Capacity

1TB

Interface

SATA 6 Gbps Interface

Compatibility

Windows10/Windows 8/Windows 7/Windows Server 2003 (32 bit and 64 bit), Vista (SP1 and above), XP (SP2 and above), MAC OSX and Linux

Dimension (WxHxD)

3.94" X 2.75 " X 0.27"

Weight

0.19 lbs.

Performance

Speed

Read/write speeds of up to 560/530 MB/s

Encryption

Class 0 (AES 256) TCG/Opal v2.0, MS eDrive (IEEE1667)

Type

Interface

SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Storage

Capacity

1,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Key Features

Sequential Read Speed

Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write Speed

Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Cache Memory

Samsung 1 GB Low Power DDR4 SDRAM

Trim Support

TRIM Supported

S.M.A.R.T. Support

S.M.A.R.T Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

WWN Support

World Wide Name supported

Device Sleep Mode Support

Yes

General

Average Power Consumption (system level)

Average: 2.5 W *Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Environmental Specs

Shock

1,500 G & 0.5 ms (Half sine)

Form Factor

Product

2.5 inch

Weight

Shipping Weight

0.2205
