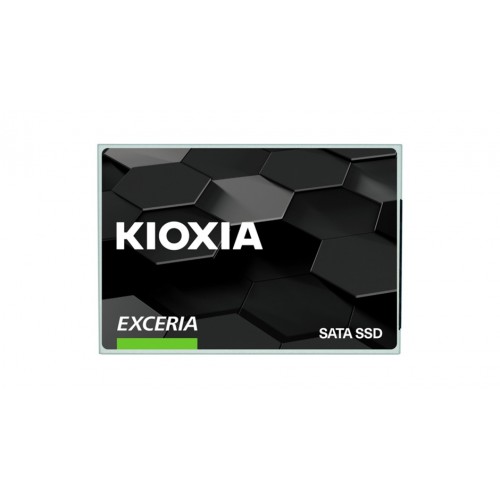

Kioxia Exceria 480GB SATA SSD

Upgrading from a hard disk drive (HDD) should be easy and affordable and that’s where EXCERIA SATA SSD series come in. Designed to boost the speed of your desktop or notebook PC over conventional HDDs, the EXCERIA SATA SSD series leverages BiCS FLASH, to deliver well-balanced performance, reliability, and value that will transform your desktop or mobile system.

Features

• BiCS FLASH
• Shock Resistant
• 2.5-inch, 7mm Height Form Factor
• SSD Utility Management Software

Instant Performance Upgrade

Up your productivity with the EXCERIA SATA SSD series and enjoy faster boot ups, file transfers, and system responsiveness. Say goodbye to hard disk drive lag and get a computing experience worthy of your time.

Performance Made Affordable

Upgrading to an SSD from a conventional HDD can feel like you've purchased an entirely new system. EXCERIA SATA SSD series balance price and performance so you have enough funds left over for other.

Improved for On-the-go

Compared to hard disk drives, EXCERIA SATA SSD series also offer improved durability and power consumption, which can translate into longer battery life to keep you up and running longer.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

EXCERIA SATA SSD Product Specifications

Capacity / dimensions

Capacity 480GB

Interface Serial ATA (SATA) 6 Gbit/s

Form Factor 2.5-inch, 7mm height

Flash Memory Type BiCS FLASH TLC

Dimension (Max: LxWxH)

100.45 x 70.10 x 7.20 mm

Weight 480GB: 45.6 g (typ.)

Performance

Max Sequential Read Speed 555 MB/s

Max Sequential Write Speed 540 MB/s

Max Random Read Speed 480GB: 82,000 IOPS

Max Random Write Speed 480GB: 88,000 IOPS

Endurance: TBW (Total Bytes Written) 480GB: 120 TB

MTTF 1.5 million hours

Operating environment / protection performance

Operating Temperature(Tc) 0 ℃ to 65 ℃

Storage Temperature -40 ℃ to 85 ℃

Certification RoHS compliant

Shock Resistance 14.7 km/s2 {1,500 G} 0.5 ms half sine wave

Vibration 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

Supply Voltage 5 V ± 5%

Power Consumption (Active) 480GB: 1.6 W (typ.)

Power Consumption (Idle) 100 mW (typ.)

Power Consumption (DevSleep) 10 mW max

Compatibility Serial ATA (SATA)

ATA/ATAPI Command Set-3 (ACS-3) and Serial ATA revision 3.2 interface specifications supported

Connector TypeStandard SATA Power Connector
